韌體升級
發佈日期 : 2013年 3月28日 圖 / 文
: 巴斯

OPPO BDP-103 及 105 藍光機,推出名為 BDP10X-50-0323B
版本韌體,以測試版方式給公眾使用,
這個容量為 106.5MB 的韌體,暫時未有提供網絡更新,暫時可以去官方網頁下載到
USB 手指上進行升級。
今次對一直喜歡 Apple AIFF
音樂檔案格式的朋友來講是一個喜訊,因為這個韌體更新後,就可以對應到這個格式。
另外, DSD,DFF 和 DSF 檔案都能對應。
但今次更新後,由藍光份得來的 AVCHD
檔就不能以這方式得到重播了。

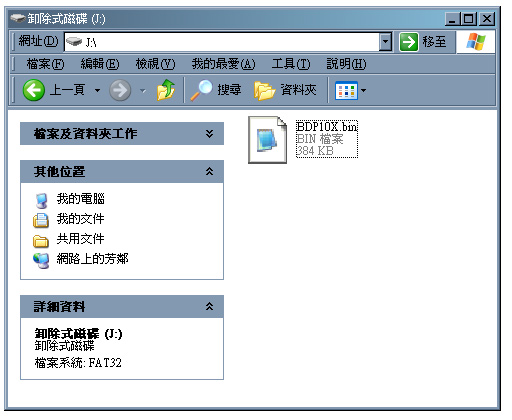

把官方提供的測試版,透過 USB
手指方式存放,然後接上 OPPO BDP-103 及 105 藍光機的 USB接口去進行升級。

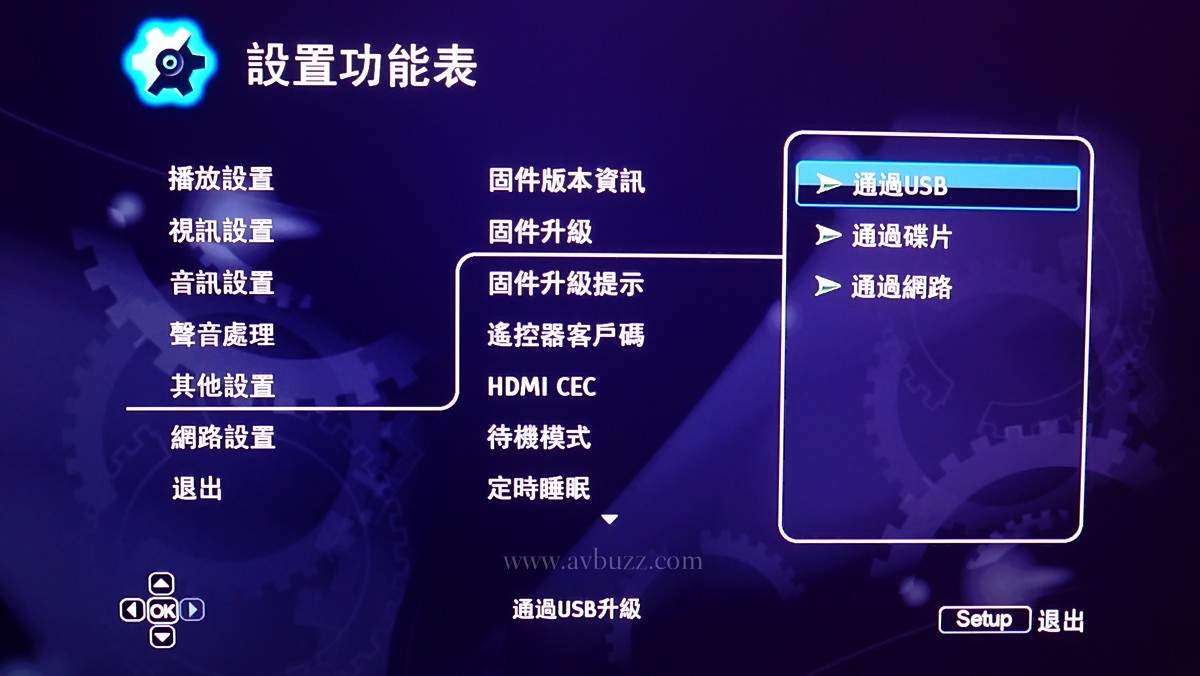

在菜單上選取通過 USB 來進行升級。

過程約數分鐘,

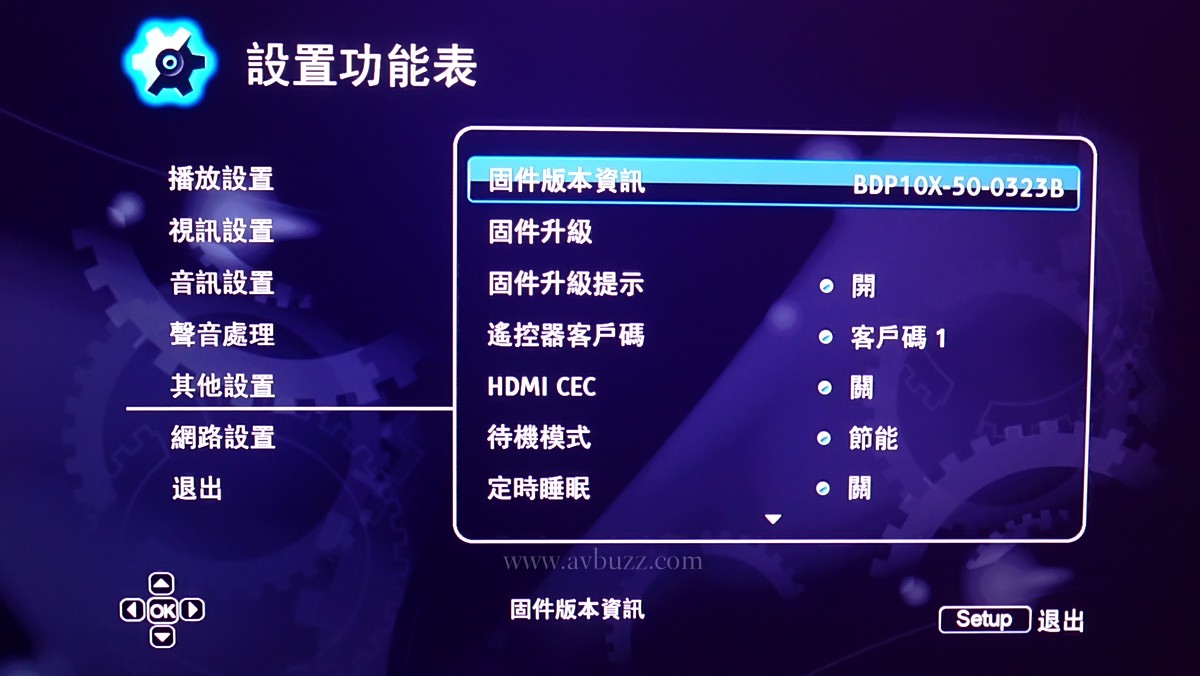

韌體就由本來是 BDP10X-38-1220
變成圖中所見的 BDP10X-50-0323B 。

雖然這個名稱上是叫做測試版,實際上如果用戶升級後,想打回上一個版本的話,

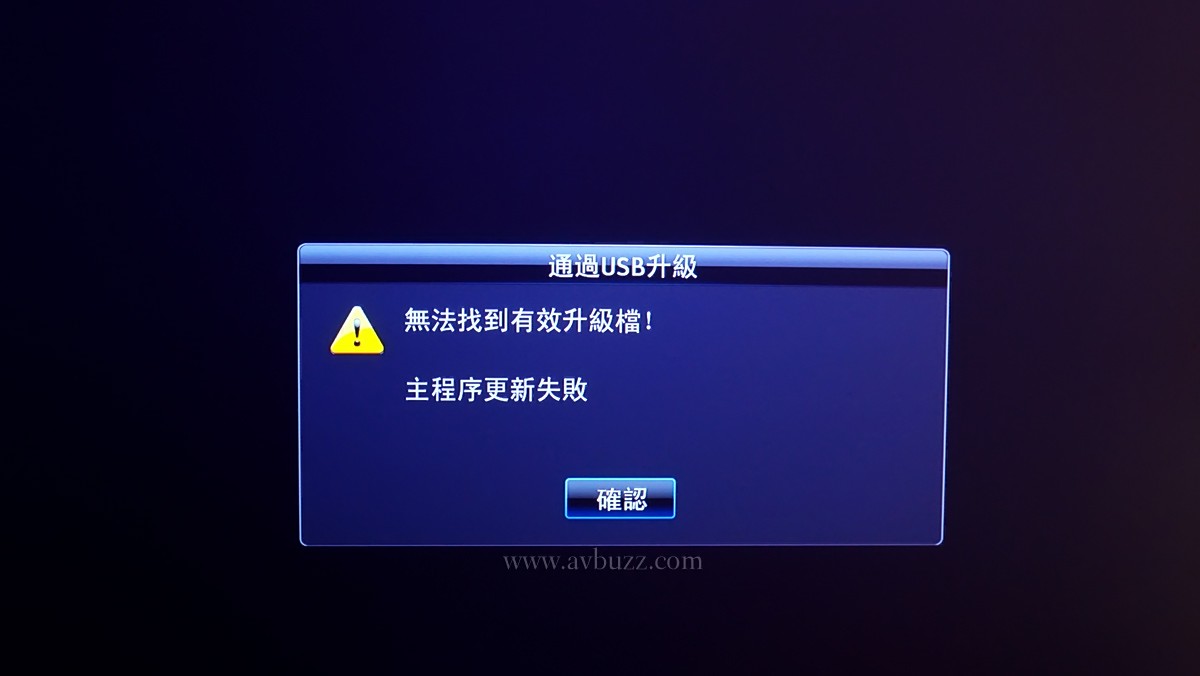

無論是透過網絡,或者USB手指,結果只會出現以下這個畫面。

以前用家播放藍光備份的 AVCHD
檔案時,來到這個位置,
只需再按入多一下,就可以進入到該內容欣賞。

升級後,再多按一下,只會見到這個畫面。
所以如果用家極之需要直讀藍光備份的 AVCHD
檔,請想清楚是否進行今次的韌體升級。
不過如果這政策不變,用家總不可能一世都不升級,因為這會影響到日後播放新推出的藍光碟無法播放。

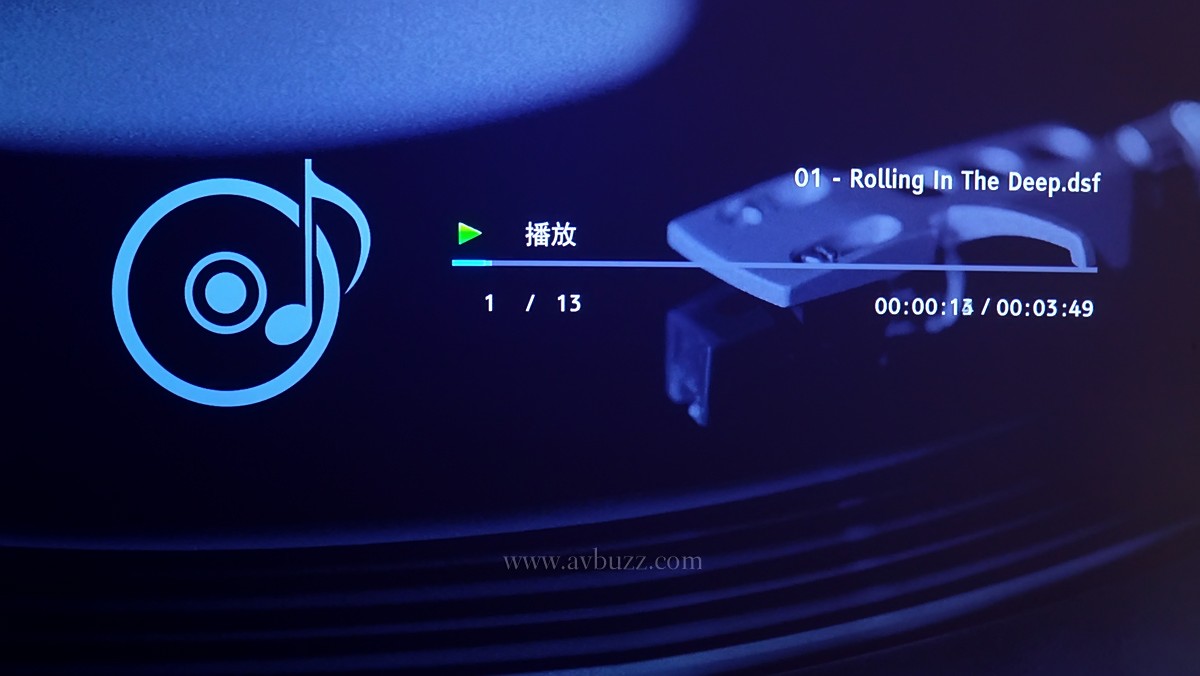

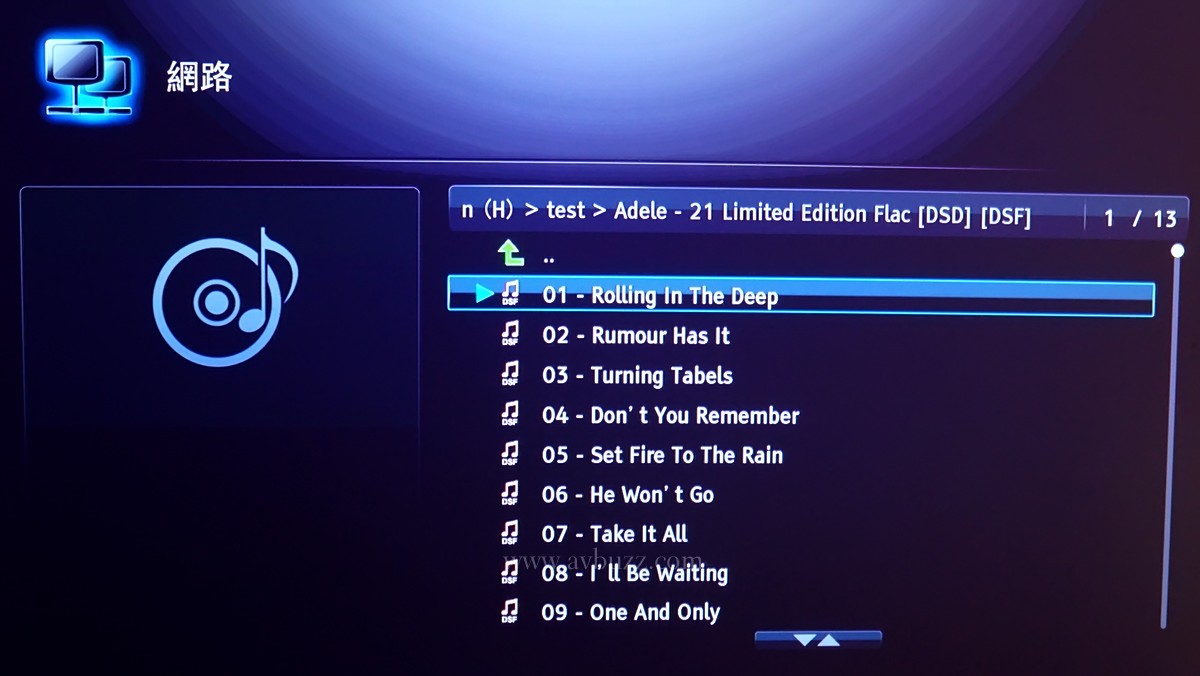

DSD,DFF 和 DSF 檔案都能對應。

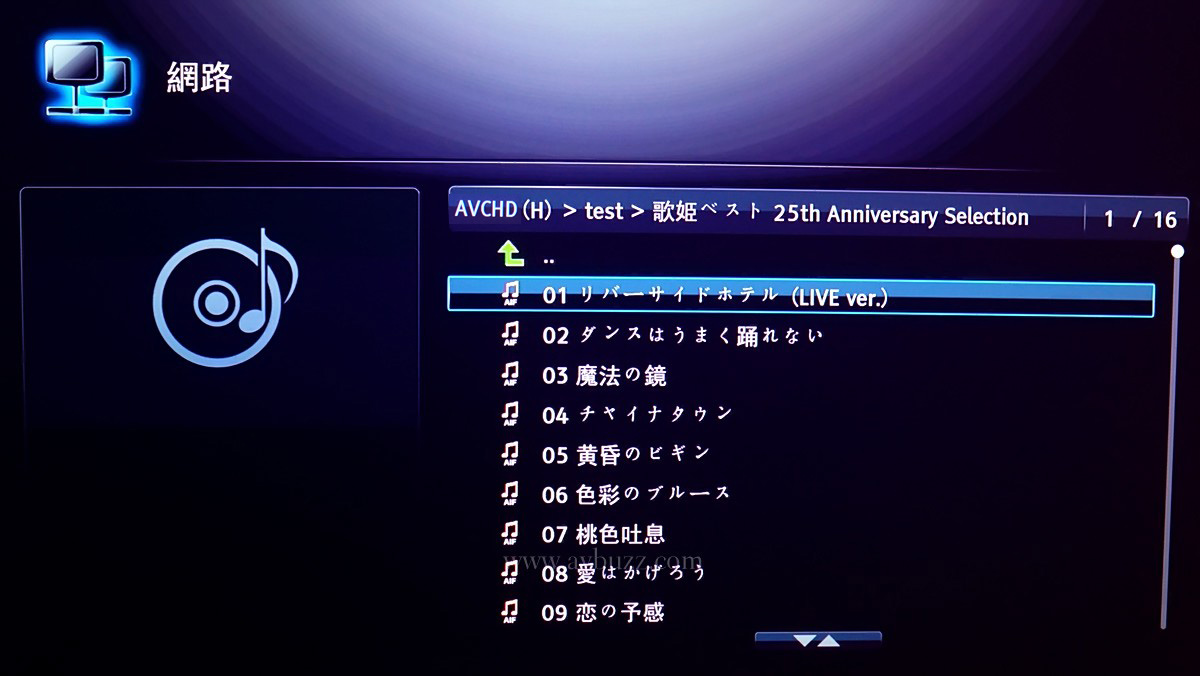

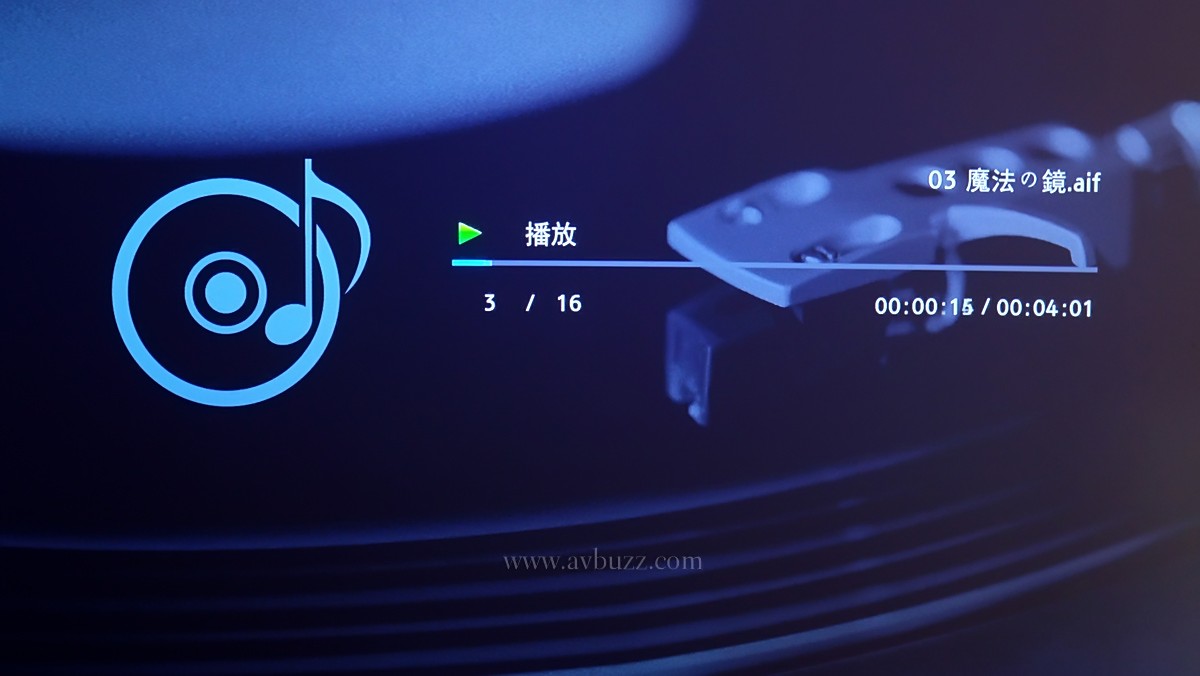

Apple AIFF 音樂檔案格式。


想進行今次測試版的韌體更新,可到以下一步到位的連結
Download 。

Click
here to download the BIN file for firmware version: BDP10X-50-0323B

有關發次測試版的升級內容,可參考以下內容,或直接到官方網頁了解。
http://www.oppodigital.com/blu-ray-bdp-103/BDP103-firmware-50-0323B.aspx
OPPO BDP-103/BDP-105 Blu-ray Disc Player Firmware Update
|
How
to Get the Public Beta Firmware Upgrade:
There
are two easy ways to upgrade your player's firmware.
1. USB
Thumb Drive -
Use your computer and a USB thumb drive.
2. Firmware
Upgrade Disc -
Use your computer to make a firmware upgrade disc.
|
Release Information:
|
Release
date: March 26, 2013.
Category: Latest Public Beta Test Release
Main Version: BDP10X-50-0323B
Loader Version: 6U0900 or 7B0800 (BDP-103), 7B0800
(BDP-105)
Sub Version: MCU103-05-0916 (BDP-103), MCU105-04-1113
(BDP-105)
|
|
Note: Although
firmware upgrade is an easy and usually trouble-free process, it
is important to ensure that the power supply to the player is
stable, and the upgrade process is not interrupted. A failed
firmware upgrade can render the player unusable.
This
release is still a beta test version, not an official release.
Use it only if you would like to experiment with the new
features and improvements. There is a very small chance of the
new features and improvements not working properly. If that
happens, please report any issue to us.
|
Release Notes:
This
version is designed for the OPPO BDP-103 and BDP-105 Blu-ray Disc
players.
Special
Notice:
- It
is not possible to revert back to any previous official or beta
firmware releases once this version is installed on the player.
There will be no problem upgrading to any future official or beta
firmware releases.
- Due
to the extensive changes in this major firmware update, it is
required that the user performs a "Reset Factory
Defaults" operation after the firmware is installed. Please
write down your special settings before doing this, and remember
to re-apply your settings and adjust the proper volume level (if
applicable) before you play any content. You may experience
stability issues if this step is not performed.
- The
new decoder firmware supplied by our chip vendor tightens the
validation check for AVCHD file format. If the files in the BDMV
folder do not fully comply with the AVCHD specification, the
folder will not play. (For example, if the files are from a disc
backup instead of an original AVCHD recording, the player will
reject it.)
- The
VUDU application has been updated and some titles now have
subtitles. However, turning on subtitles may result in the player
exiting to the HOME menu unexpectedly. We are currently working
with VUDU to resolve this issue.
Comparing
to the
previous Official release version BDP10X-38-1220, the major changes
included in this version are:
- Added
support for Direct Stream Digital (DSD) file playback from local
storage. The DSD files can be either stereo or multi-channel. Both
the DFF and the DSF formats are supported.
- Added
support for CUE file playback. The function can be applied to
music files on local storage and supported audio formats include
FLAC, WAV, APE and MP3.
- Added
a feature that allows the creation of playlists while accessing
music files from local USB storage. When navigating these music
files, pressing the OPTION button will bring up a menu with a
prompt to either "Add to playlist" or "Goto
playlist". The created playlist file is stored within the
local USB storage, inside "OPPO_Media_Info/playlist".
- Added
support for the AIFF audio format.
- Added
support for the ExFAT file system.
- Added
additional Crossover Frequency selections (50, 70, 130, 140 and
160Hz) in the "Setup Menu"->"Audio
Processing"->"Crossover".
- Added
a feature that allows the user to decide which mode (Auto, Film
and Video) to use when performing video de-interlacing. This can
be set in "Setup Menu"->"Video Setup" ->
"HDMI Options"->"De-interlacing Mode".
- Added
DMR Seek capability, so the user can drag the progress bar on the
DMC side and adjust the media file playback progress on the
player.
- Removed
a limitation in "Audio Processing"->"Speaker
Configuration", that turns off the SBL and SBR speakers
automatically when the Center speaker is set to "Off".
However, if the SL and the SR speakers are set to "Off",
the SBL and the SBR speakers will still be muted.
- Resolved
a recently reported FLAC file playback failure issue. Some FLAC
files made from the latest version of the EAC (Exact Audio Copy)
software tool could not be played on the BDP-103/105 players. This
issue has been resolved.
- Improved
the down-mixing algorithm for the BDP-105's headphone output. This
results in better volume and sound stage when playing certain
multi-channel audio sources.
- This
change takes advantage of the main audio DSP (digital signal
processor) that is normally assigned to the multi-channel
analog output. When headphones are connected, the
multi-channel analog output is muted and the DSP is
temporarily reconfigured for stereo down-mixing and its output
is routed to the headphone amplifier. Please do not try to
adjust the player's audio processing settings while the
headphones are plugged in, as these settings are only
temporarily used and will be restored to the user's original
settings when the headphones are removed.
- Added
a feature that allows the adjustment of the audio delay time
within the range of -100ms to +100ms. This can be set under
"Setup Menu"->"Audio Processing" ->
"A/V Sync", and the delayed time will be applied to all
output terminals including HDMI 1 and 2, Coaxial, Optical, and 7.1
outputs (including the Stereo outputs of the BDP-105).
- The
actual audio delay effect might be different for each of the
output terminals due to the different audio process algorithms
and signal paths used for each output. Please adjust this
setting based on the actual output terminal in use.
- The
negative adjustment values are for cancelling out the audio
delay that the player automatically applies. Depending on the
video source and the time it takes to process the video, the
main decoder chip automatically applies an audio delay in
order to optimize audio video synchronization. The negative
manual settings reduce the automatic audio delay, while the
positive manual settings apply additional delay. Any negative
value setting beyond the player's automatic delay will be
treated as completely cancelling the automatic delay. For
example, if the "A/V Sync" value is manually set to
-100ms and for the current video source the player applies a
70ms automatic audio delay, the final result is that the 70ms
audio delay gets cancelled and the audio is not delayed at
all. It is not possible to put audio ahead of video using this
setting.
- Resolved
the brief audio popping issue found on the 7.1 and Stereo audio
outputs. This popping noise could happen when the player is
processing content from a television cable box (through the HDMI
inputs), and when channels are switched on the cable box. This
issue has been resolved.
- Added
basic support for a USB keyboard. Some of the supported keys and
their functions are:
- Numerical
keyboard: if Num Lock is turned on, functions as Numerical
buttons; if Num Lock is turned off, functions as navigation
buttons ("2", "4", "6",
"8").
- ARROW
buttons (UP, DOWN, LEFT, RIGHT): functions as navigation
buttons.
- HOME
button: functions as HOME button.
- END
button: functions as STOP button.
- Page
Up/Down buttons: functions as PAGE UP/DOWN buttons.
- ESC
button: functions as RETURN button.
- ENTER
button: functions as ENTER button.
- SPACE
button: insert a space between characters on the soft
keyboard.
- General
disc compatibility improvement based on recent and upcoming Blu-ray
releases as well as user-submitted disc samples.
All
features and improvements of the previous firmware are also included in
this version.
Firmware
Upgrade Instructions:
Note: Since
this is a public beta test version, it cannot be installed using the
"Via Network" upgrade method. Please choose the "Via USB"
or "Via Disc" method instead. Alternatively, you can wait for
this beta test version to be qualified as an official release version,
and then perform an update to the latest official release via the
Internet.
|
