DAC17, good choice.
In addition, once you received it, please burn-in for at least 150 Hrs.
Yes! All you need is his English name.
Have you sent him the MTCN code?
He need it and his own ID to get the money. |
|
|
|
|
|
|
|
|
Dac 17
I sent money last night, I found a western union shop in mongkok, he said need english name only |
|
|
|
|
|
|
|
|
ckc,
FYI!
First Name : He Qing
Last Name : Hua
Address : 603, Blk 3, Xinui San Rd, Shunde, Foshan, China
Post Code : 528300
by the way, can you tell me what have you ordered? |
|
|
|
|
|
|
|
|
i went to western union today, 店員話要英文地址、人名等等information.????????????????
我只有中文  |
|
|
|
|
|
|
|
|
thank you for your helpful information  |
|
|
|
|
|
|
|
|
> >dac19 is a bit cool
> Can mod it to neutral or little bit warm
Yes! There are several location that can be mod to make it "softer", I have tried that but the "resolving power" will be decreased and the sound will become not "clear" as before. So I switch back.
> > dac17 is warm and "musical"
> Is it just normal analysis? how about wide & deep?
because I listen classic(60%), vocal(40%)
Please noted that the DAC17 and DAC19 were in difference class.
If you really want to compare the difference, you better bring you CDs to visit Mr. Ho in China. |
|
|
|
|
|
|
|
|
> how about this? 隔離台好多人講this dac, so cheap, $699, but need mod something.
I never try this myself but I have visit the site before and here is my comment after reading the texts and photoes on their site.
1) The Power supply section (317/337) is better than the internal dac in your CDP but there are lots more good power supply in the market which is better than (317/337), if you want to mod it, use (1085/1033) to replace them.
2) I think the DAC chip and opamp used are not as good as your CDP.
3) The Balanced out is not a real balance out, it just used OPAMP to convert unbalanced out (RCA) to Balanced out, not used.
> and then if 分析力 dac19 is same/better than dac17, what sound charactor is dac17 win?
The sound of dac19 is a bit cool and dac17 is warm and "musical"!
In addition, the DAC19 don't have blanced out and DAC17 have REAL balanced out!
>if buy dac17, will it need mod too much?
No need, the original deisgn is already very good.
If you really want to mod it, since each DAC17 is build-to-order, just tell them how you want to mod it and they can do it for you.
If they don't have the component, you can mail those components to them. |
|
|
|
|
|
|
|
|
http://www.zhaolu.com/products/product7.htm
how about this? 隔離台好多人講this dac, so cheap, $699, but need mod something.
and then if 分析力 dac19 is same/better than dac17, what sound charactor is dac17 win?
thx...
if buy dac17, will it need mod too much? |
|
|
|
|
|
|
|
|
> my cdp is PCM1732, is it o.k?
Just read the specification on the net on A8s.
Yes! It is PCM1732 + 2 x 604 + 2 x 5532
For PCM1732 itself, it is a good DAC chip.
However, without the circuit diagram, it is not easy to judge the performance of the I/V stage using 2 x 604 + 2 x 5532
But from the photo of A8s, the weakness is the power supply part. It is a just single small size transformer with simple IC power regulator.
1) Separate transformer should be used for digital and analog circuit.
2) a better power supply circuit should be used.
If you don't want to buy an external DAC and want to mod the CDP only, my advice is
1) change the clock to an TCXO
2) upgrade the power supply
> which type of transformer did u use?
R-Transformer.
> what method to pay money is the best & fast?
Western Union (A fix handling charge of HKD100 per transaction)
For details
http://www.audio-gd.com/buy.htm
--------------------------
In addition, they just announance DAC19.2.
it is just a upgraded version DAC19 with all the upgrade that I used in my own DAC19 except I used three transformer instead of two. |
|
|
|
|
|
|
|
|
Sorry! I forget to updated my email in the profile.
mwpmo@hotmail.com
However, if you have any questions, please feel free to discuss here. |
|
|
|
|
|
|
|
|
thank for your information!
my cdp is PCM1732, is it o.k?
which type of transformer did u use?
what method to pay money is the best & fast?
|
|
|
|
|
|
|
|
|
> my cdp is original a8s, mod opamp 637 & 627, so I worry not much better if I add dac
It all depends on the DAC design in your CDP, mainly which model of your DAC chip.
For the I/V Stage after the DAC chip, in normal design is OPAMP, upgrade the opamp and modify the sound, but if the DAC chip is not very good. The impovement is not much.
One advantage of DAC17 & DAC19 is that they replace the OPAMPs with clone Marantz "HDAM" circuit. (So NO opamp!). It can provide more dynamic output.
In many cases, an enternal DAC can provide better sound cause there will be no limitation of space that will limit the type of power supply and size of the transformer used. (where the power supply can affect the sound a lot)
> do u know what the different between dac 19u / 19R?
The only difference is the transformer used (19U use C-transformer and 19R use R-transformer).
In addition, please note that my own DIY DAC19 is differet with the standrad DAC19, I use a extra stage of power supply (so in total two stages) and I upgrade some 0.1u cap to Solen.
However, if you like the one I did, you can ask them to do the same but it will cost more (about RMB 800 extra). |
|
|
|
|
|
|
|
|
of course I am not only need anaysis, I also like airy & dynamic, my cdp is original a8s, mod opamp 637 & 627, so I worry not much better if I add dac
do u know what the different between dac 19u / 19R?
thx....  |
|
|
|
|
|
|
|
|
> DAc17, dac19 & dac1, which one 注重分析力的?
If only consider 分析力, DAC19 is the best!
However, for sound, DAC17 is better.
> 這幾個型號的聲有乜野唔同?
DAC19 - 分析力 is higher
DAC17 - Overall sound is better.
DAC1 - I never try so I don't know.
> Is it worth to buy compare with 牌子貨 or 麗特dac?
牌子貨? I don't know which one you want to buy and what is the price range.
For 麗特dac, within the same price range, I think audio-gd is better.
---------------------
Please note that DAC17 or DAC19 is just designed for CD only. (16 bits 44.1 kHz)
Not for DVD-A or SACD.
However, it should be enough if your source is mainly CD. |
|
|
|
|
|
|
|
|
thanks for your reply!
but dac 17 need $3500, little bit expensive in china brand
DAc17, dac19 & dac1, which one 注重分析力的?
這幾個型號的聲有乜野唔同?
Is it worth to buy compare with 牌子貨 or 麗特dac?
Sorry! I am a new hand for DAC  |
|
|
|
|
|
|
|
|
Beside DAC19 that I built myself,
I also got a DAC17 成品機 from audio-gd. The sound is better my own DAC19.
The workmanship of the PCB inside is good but the outlook of the case is not quite good. |
|
|
|
|
|
|
|
|
|
hello, I saw that u used audio-gd.com dac pcb, what do u think these dac's 成品機? I am not a diyer, but I am interest for it. |
|
|
|
|
|
|
|
|
|
It is already the whole schematic (w/ 1 analog channel, but the other is just the same) |
|
|
|
|
|
|
|
|
Thanks for you help mwpmo hing, but can I have the detail schematic?
Because there is only show a part of the circuit.
Thanks |
|
|
|
|
|
|
|
|
Mwpmo Hing,
I find your DAC19 is use ti pcm1704 chips, I also want to DIY one
dac for my old cd player.
So, could you kindly send me a schematic for reference?
Actually, I already complete the layout and assembly, but I find the
high frequency has been cut, thus I want to know the low pass filter
topology of other design. I don't know it's pcm1704 characteristic or the other reason.
Hope you could give a help.
Thankyou very much. |
|
|
|
|
|
|
|
|

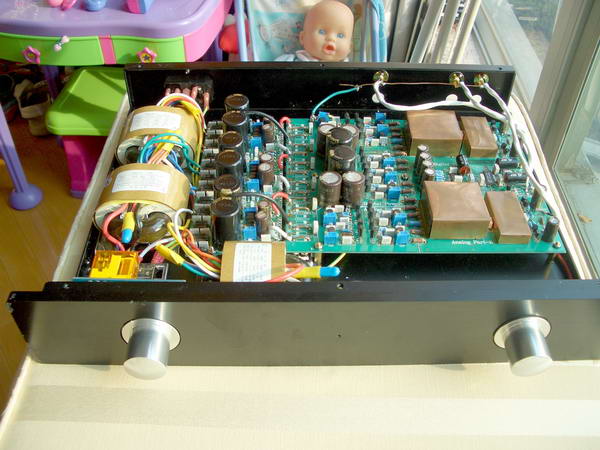

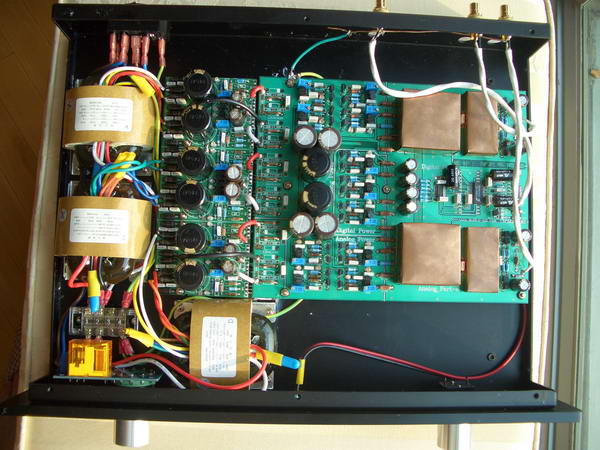

I have completed DAC19 last night.
More photos have been uploaded in http://diy.tower3a.com
Next Step - Enjoy Music !!!. |
|
|
|
|
|
|
|
|

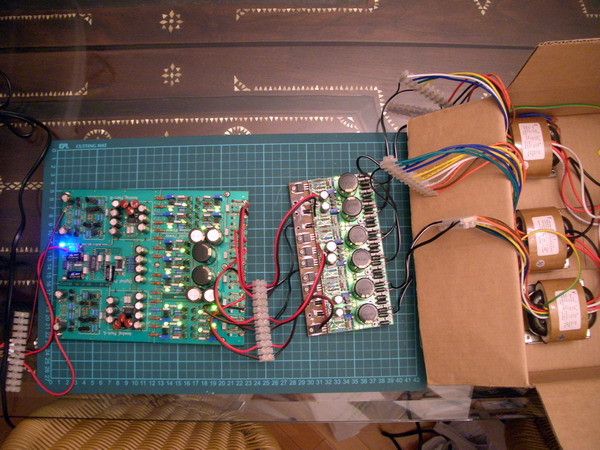

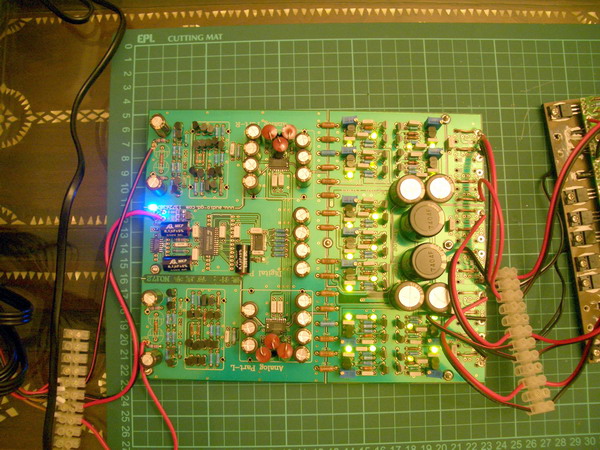

I have tested DAC19 last night.
冇用交連電容, DC in analog out is about 25mV (at PCM1704U-K DAC out is 0.8mV)
In my opinion, the bass and the "dynamic" is better than my AW-D2.
More details can be heard.

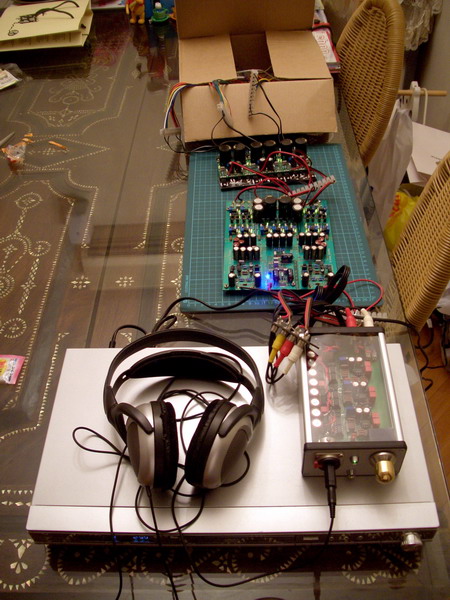

At first, I just plan to test it for a few mins but at this end, I listen it for nearly two hours (until the battery in my PPA headphone dead).
More photos have been uploaded in http://diy.tower3a.com
Next Step - Installed copper shielding box to shield the dac chips and the I/V module |
|
|
|
|
|
|
|
|
After my DIY CD Player was completed, I started my new DIY project.

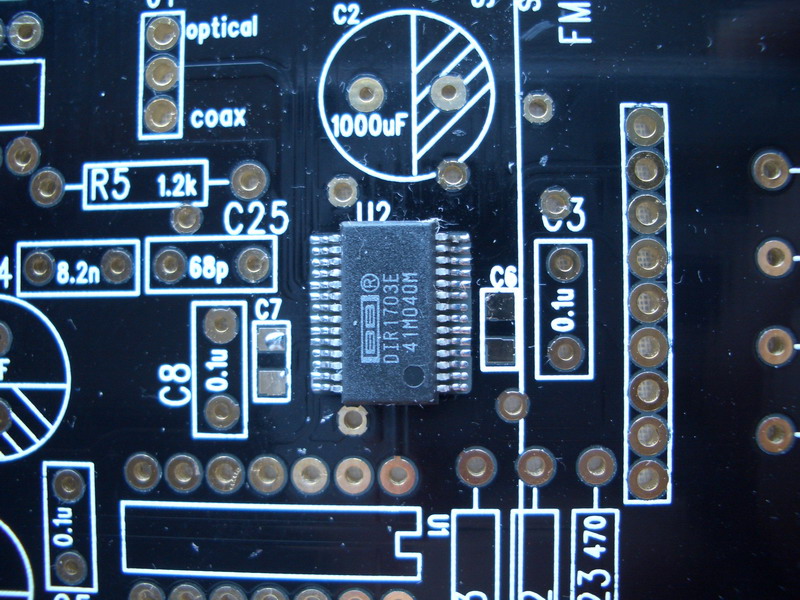

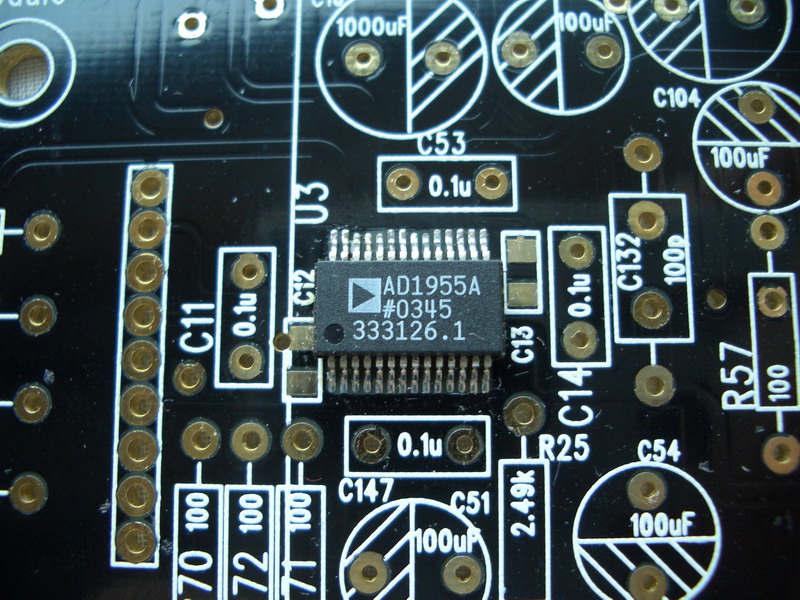

A DAC with Burr-Brown DIR1703 數碼接收晶片 and Analog Device 的頂級DAC - AD1955 解碼晶片
|
|
|
|
|
|
|
