主題：DIY DAC

1 2 3 4

作者：mwpmo (218.xxx.xxx.167)

發表主題：44

回應文章：393

日期：2005-07-11 14:29

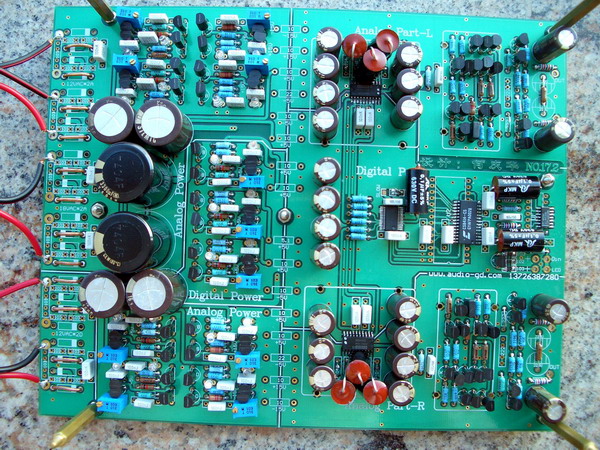

Just finished the Main PCB.

More photos have been added.

http://diy.tower3a.com

Next step : Testing.

作者：mwpmo (218.xxx.xxx.183)

發表主題：44

回應文章：393

日期：2005-07-06 09:57

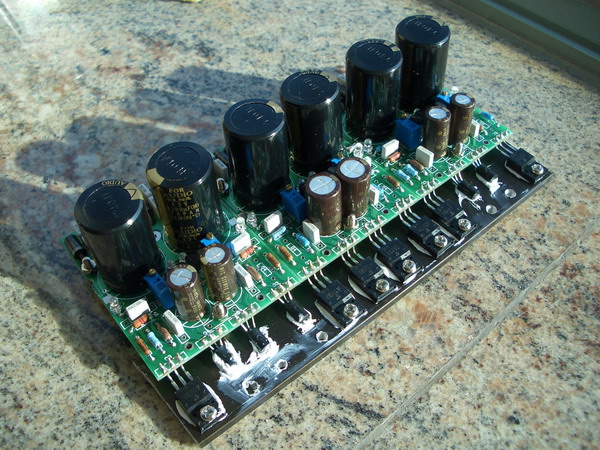

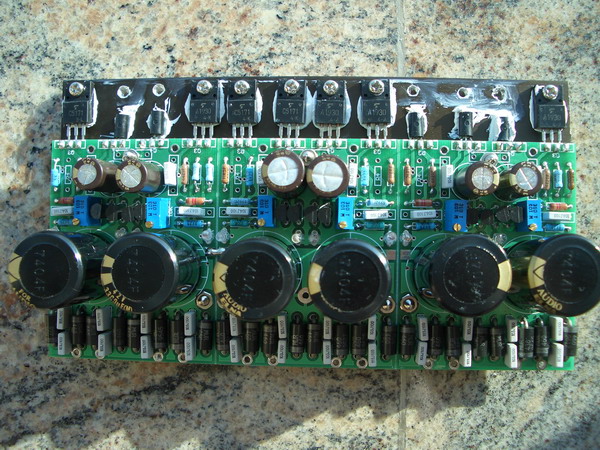

Just finished the external 並聯穩壓 (with all power transistors mounted on the Aluminum Bar as cooler)

Then the bar will be mounted on the case.

More photos have been added.

http://diy.tower3a.com

Next step : Main DAC board.

作者：mwpmo (203.xxx.xxx.109)

發表主題：44

回應文章：393

日期：2005-07-02 11:44

My friend get my old DAC AW-D2.

So I started to build a new one.

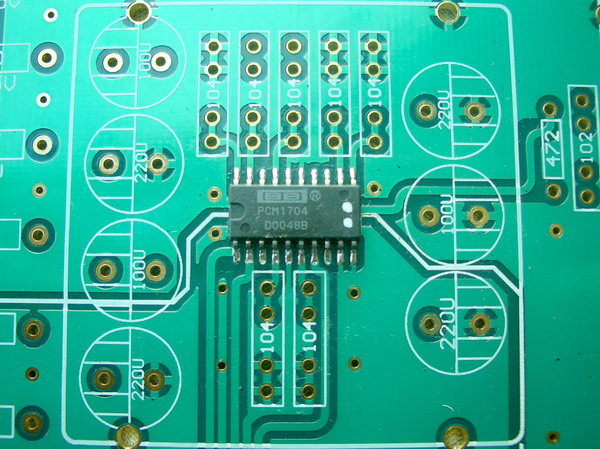

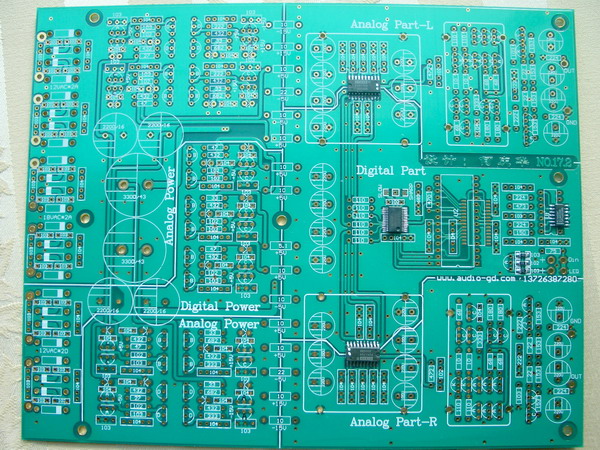

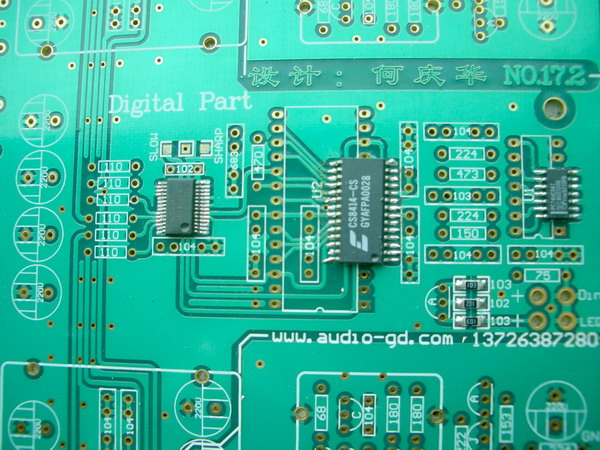

Here is the photo of the PCB

(CS8414 + DF1704 + 2 x PCM1704U-K)

No OP-AMP, just use matched transistors as Output Stage.

16 different Voltages

+5V D for 74CU04
+5V D for CS8414
+5V A for CS8414
+5V D for DF1704
+5V A for PCM1704 (Left)
-5V A for PCM1704 (Left)
+5V D for PCM1704 (Left)
-5V D for PCM1704 (Left)
+15V A for output stage (Left)
-15V A for output stage (Left)
+5V A for PCM1704 (Right)
-5V A for PCM1704 (Right)
+5V D for PCM1704 (Right)
-5V D for PCM1704 (Right)
+15V A for output stage (Right)
-15V A for output stage (Right)

作者：Duckduck (219.xxx.xxx.172)

發表主題：34

回應文章：339

日期：2005-07-02 09:04

Oh no. I have already poisonous by you guys diyfever.

DIY is really the most cost effective solution of upgrade.

Thank you man.

. . .

作者：hohomok (203.xxx.xxx.202)

發表主題：0

回應文章：21

日期：2005-07-02 04:01

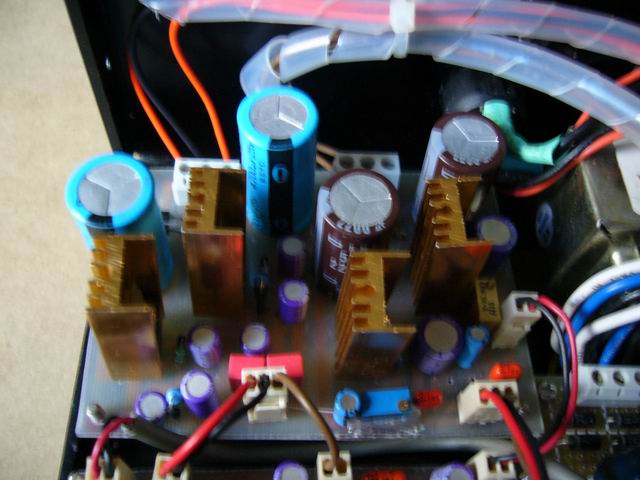

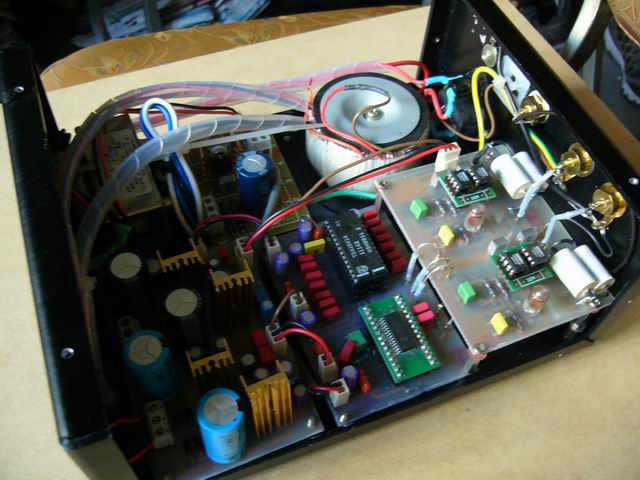

hi 我則砌了個dac

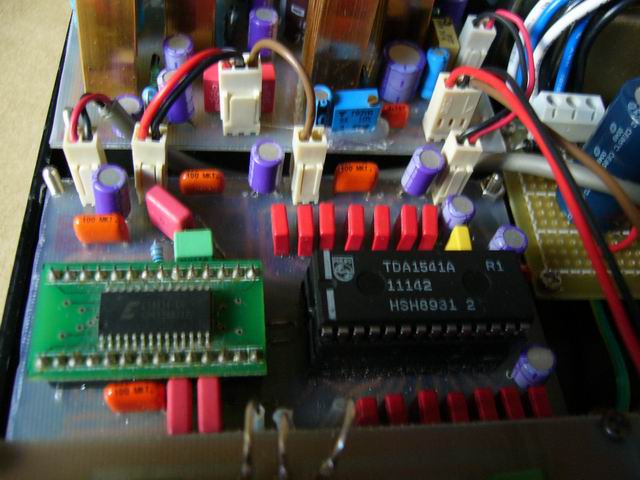

cs8414+tda1541
+5v 2組 -5v 1組 +15v 1組 -15v 1組
pcb 都是自己蝕的

作者：mwpmo (218.xxx.xxx.195)

發表主題：44

回應文章：393

日期：2005-02-24 11:08

OK! I will install it later.

The next step - get a nice case and complete the DAC.

作者：Jacky Leung (203.xxx.xxx.143)

發表主題：58

回應文章：229

日期：2005-02-17 10:44

mwpmo兄,

原來如此. 不過1個pluse transformer 都係30元左右, 加埋佢啦. 因為你係用coax 線, 所以都有可能有noise...

有沒有興趣自己做個套升頻option kit

作者：mwpmo (203.xxx.xxx.109)

發表主題：44

回應文章：393

日期：2005-02-17 00:37

Sorry!

The Link to DIY CDP is just want to show the pluse transformer was installed in CDP already.

For the DAC, it is not a kit, they just sell you the board and provide the circuit only, you need to buy all components yourself.

The total I spent on this kit is about 3K.
(All Holco resisters, 4 x 627BP & 2 x 637BP, WIMA film cap, Blackgate Non-Polar e-cap ....)

If you use cheaper componets, you can completed the kit within 1.5K

作者：dicky2000 (219.xxx.xxx.108)

發表主題：27

回應文章：382

日期：2005-02-17 00:26

MWPMO,

Sorry ! 你誤會了, 我是問D/A kit(PCB+零件+火牛)多少錢 ? 而不是 DIY CDP kit 多少錢 !

作者：mwpmo (203.xxx.xxx.109)

發表主題：44

回應文章：393

日期：2005-02-16 22:44

Don't worry, the "分離式穩壓電源模組" have protection diode on it.

The reason why I don't use a pluse tranformer is that the digital out of my CD player already have one.

http://avbuzz.com/bbs/av-cafe/av-cafe-thread-34477.html

No need to add here

作者：Jacky Leung (218.xxx.xxx.44)

發表主題：58

回應文章：229

日期：2005-02-16 21:35

mwpmo 兄,

好勁啊!!

但小心粒da 啊, 好易燒嫁.
我用緊43122, 因為1次電壓唔穩而報銷......

yi......點解唔係coax. input 個位加pluse transformer?

作者：dicky2000 (203.xxx.xxx.128)

發表主題：27

回應文章：382

日期：2005-02-16 20:13

請問這份kit (PCB+零件+火牛)約要多少錢 ?

作者：mwpmo (202.xxx.xxx.147)

發表主題：44

回應文章：393

日期：2005-02-16 12:16

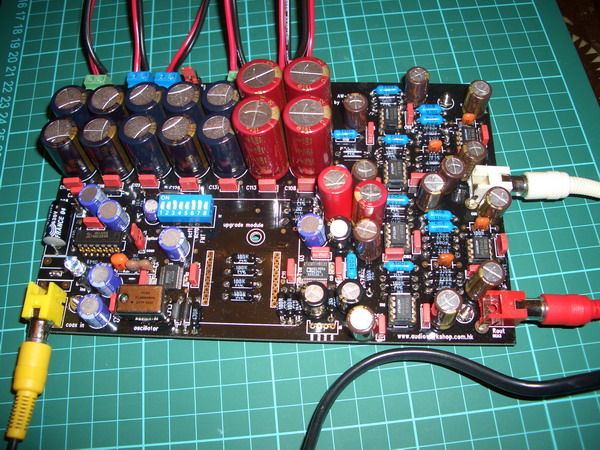

Just Finished!

作者：kship (202.xxx.xxx.70)

發表主題：4

回應文章：75

日期：2005-02-16 11:05

作者：mwpmo (202.xxx.xxx.147)

發表主題：44

回應文章：393

日期：2005-02-07 10:56

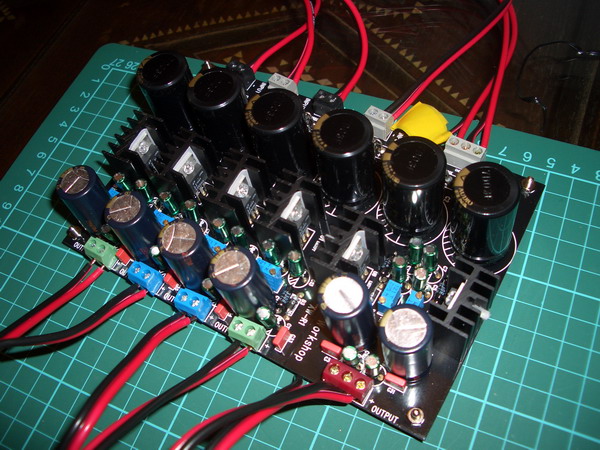

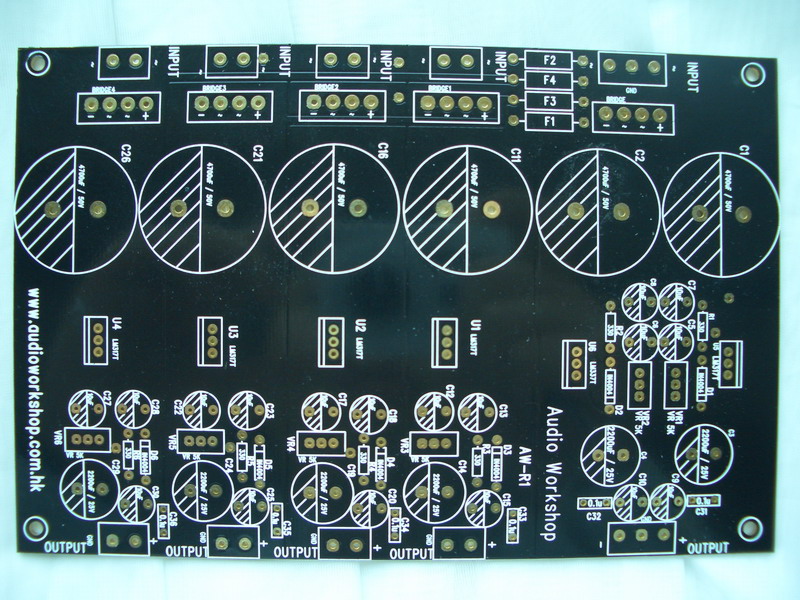

分離式穩壓電源模組，輸出為 5 組正電壓和 1 組負電壓

作者：mwpmo (203.xxx.xxx.109)

發表主題：44

回應文章：393

日期：2005-02-05 00:03

> you test all performance by yourself?

This DAC has not yet finished.

But I will test all performance by myself.

作者：James (61.xxx.xxx.251)

發表主題：108

回應文章：2233

日期：2005-02-04 22:26

Thanks for your reply, one more question - you test all performance by yourself? Its really great job.

发烧是圆梦的过程，既是痛苦的，又是令人欢愉的。一生中的梦是不断追求的起因，它总是在天际处向我们微笑，我们就在这不归路上渐渐远去。

作者：mwpmo (203.xxx.xxx.109)

發表主題：44

回應文章：393

日期：2005-02-04 21:43

> All the PCB are designed, made and soldered by your self?

No!

The PCB was designed by a guy called takashi.

I just bought the PCB from him.

All I need to do is to buy all other component (IC, cap, resister....) and solder them on the PCB.
